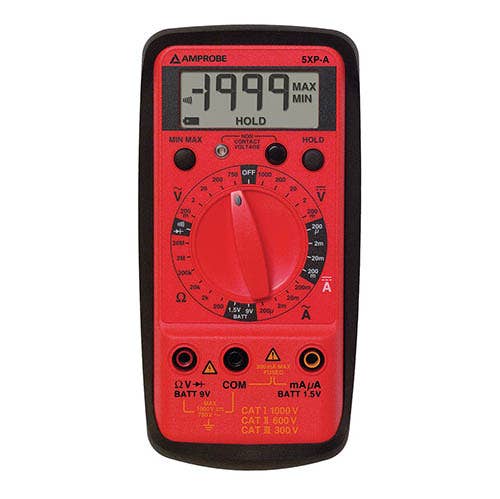

Amprobe 5XP-A Compact Digital Multimeter

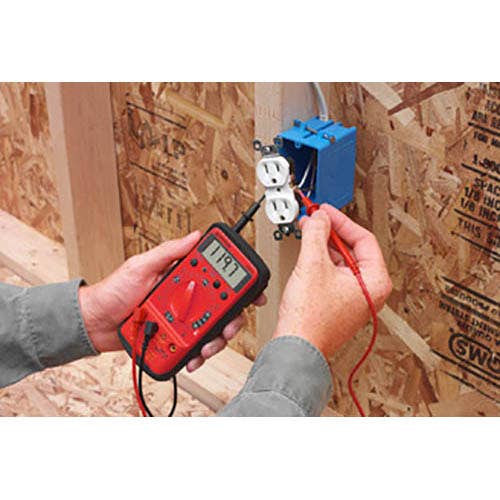

The Amprobe 5XP-A is a compact digital multimeter built for residential, commercial and general troubleshooting work. It measures AC voltage to 750 V, DC voltage to 1000 V, AC and DC current to 200 mA and resistance to 10 MΩ, with readings shown on a 3-1/2 digit LCD. VolTect non-contact voltage detection, a battery load test, continuity beeper, diode test and a Min/Max function round out a meter that covers 10 functions across 27 ranges.
Specifications
| Brand | Amprobe |
| Model | 5XP-A |
| Type | Compact digital multimeter |
| Functions / Ranges | 10 functions, 27 ranges |
| AC Voltage | to 750 V |
| DC Voltage | to 1000 V |
| AC and DC Current | to 200 mA |
| Resistance | to 10 MΩ |
| Display | 3-1/2 digit LCD |
| Non-Contact Voltage | VolTect non-contact voltage detection |
| Battery Load Test | 1.5 V and 9 V |
| Additional Functions | Continuity beeper, diode test, Min/Max |
| Protection and Indication | Overload protection, low battery and overrange indication, automatic polarity with negative polarity indication |
| Holster | Magne-Grip holster |
| Safety Ratings | CAT II 600 V, CAT III 300 V |
